    Semi-Micro cell with frosted walls and with telflon stopper (Q393-Q399)

    Semi-Micro cell with frosted walls and with telflon stopper (Q393-Q399)
    Item Code: Features:
    • Description
    • Main Specifications
    • Accessories

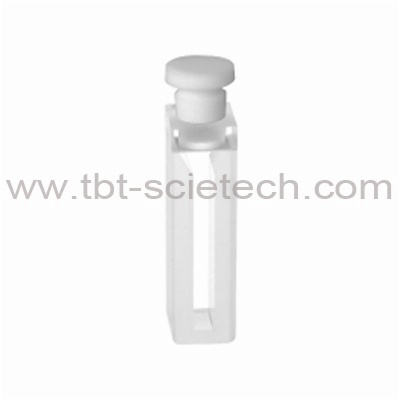

    Semi-Micro cell with frosted walls and with telflon stopper



    Outside Dim H*W*D mm
    Path Length
     mm
    Inside Width
    mm
    Volume
    ml
    ES Quartz Glass 190nm-2500nm
    IR Quartz Glass 250nm-3500nm
    Optical Glass
    340nm-2500nm
    45*12.5*7.5
    5
    5
    0.85
    Q-393
    I-393
    G-393
    45*12.5*12.5
    10
    5
    1.7
    Q-394
    I-394
    G-394
    45*12.5*22.5
    20
    5
    3.5
    Q-395
    I-395
    G-395
    45*12.5*32.5
    30
    5
    5.2
    Q-396
    I-396
    G-396
    45*12.5*42.5
    40
    5
    7.0
    Q-397
    I-397
    G-397
    45*12.5*52.5
    50
    5
    8.75
    Q-398
    I-398
    G-398
    45*12.5*102.5
    100
    5
    17.5
    Q-399
    I-399
    G-399


    Any questions, please contact us.
