    Micro cell with black walls and telflon stopper (Q53-Q59)

    Micro cell with black walls and telflon stopper (Q53-Q59)
    Item Code: Features:
    • Description
    • Main Specifications
    • Accessories

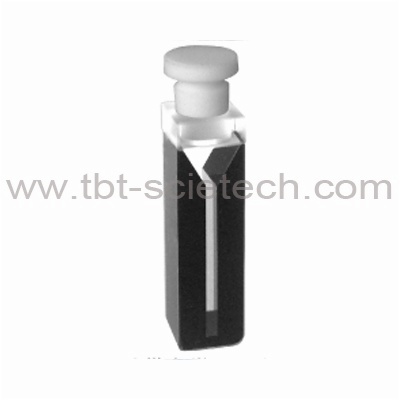

    Micro cell with black walls and telflon stopper



    Outside Dim H*W*D mm
    Path Length
     mm
    Inside Width
    mm
    Volume
    ml
    ES Quartz Glass 190nm-2500nm
    IR Quartz Glass 250nm-3500nm
    Optical Glass
    340nm-2500nm
    45*12.5*7.5
    5
    2
    0.35
    Q-53
    I-53
    G-53
    45*12.5*12.5
    10
    2
    0.7
    Q-54
    I-54
    G-54
    45*12.5*22.5
    20
    2
    1.4
    Q-55
    I-55
    G-55
    45*12.5*32.5
    30
    2
    2.1
    Q-56
    I-56
    G-56
    45*12.5*42.5
    40
    2
    2.8
    Q-57
    I-57
    G-57
    45*12.5*52.5
    50
    2
    3.5
    Q-58
    I-58
    G-58
    45*12.5*102.5
    100
    2
    7
    Q-59
    I-59
    G-59
