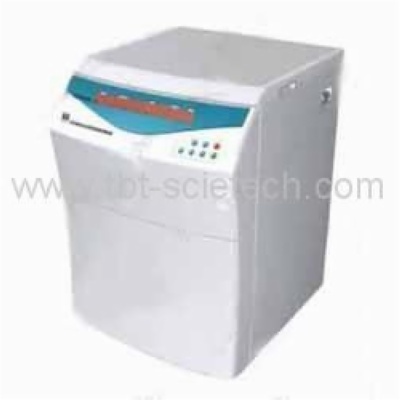

H2050R-1 High Speed Refrigerated Centrifuge
I. Application
● Microprocessor control ,the brushless direct drive motor with frequency conversion for environment protection.
● The function of electronic lock door , over-speed and over-temperature, protection plus various kinds of rotors for convenient use ensure a safe and productive work environment.
II. Specifications:
Product Model
|
H2050R-1
|
Max. speed
|
20500r/min.
|
Max RCF
|
29200×g
|
Max capacity
|
48 x 15ml 4 x 300ml
|
Speed Accuracy
|
±50r/min
|
Temperature Range
|
-20℃ - 40℃
|
Temperature Accuracy
|
±1.5℃
|
Time Range
|
0 - 99min
|
Noise
|
<65dB(A)
|
Motor
|
Motor with Frequency Inversion
|
Power Supply
|
220V 50Hz, 18A
|
Dimension
|
580 x 800 x 900mm(L x W x H)
|
Weight
|
110kg
|
Rotor
Number
|
Max. Speed
|
Max. RCF
|
Capacity
|
No.1 Angle Rotor
|
20500r/min
|
29200*g
|
12*1.5 / 2.2ml
|
No.2 Angle Rotor
|
16500r/min
|
17280*g
|
10*5ml
|
No.3 Angle Rotor
|
15000r/min
|
23120*g
|
12*10ml
|
No.4 Angle Rotor
|
13000r/min
|
16760*g
|
6*50 / 6*30ml
|
No.5 Swing Rotor
|
4500r/min
|
4210*g
|
48*15ml / 4*30ml
|
No.6 Bucket Rotor
|
4000r/min
|
1400*g
|
2*48 core
|
No.7 Angle Rotor
|
16500r/min
|
24890*g
|
24*1.5 / 2.2ml
|
No.8 Angle Rotor
|
14000r/min
|
19030*g
|
4*50ml
|
No.9 Angle Rotor
|
12000r/min
|
11720*g
|
4*100ml
|
No. 4 Angle Rotor (6*50ml) No.8 Angle Rotor (4*50ml) Equipped with peaked bottom duat No. 5 Swing Rotor equipped with adapter
|
