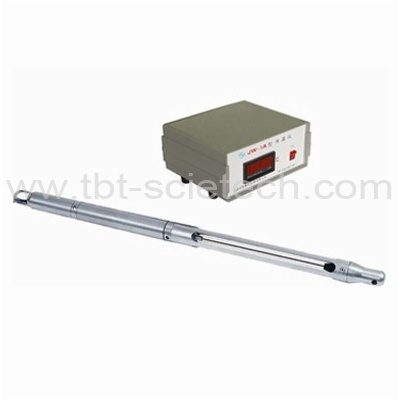

The instrument is mainly used to determine temperature in the borehole. Lower down the temperature probe into borehole using cable, then you can get temperature-depth curve from controlling unit. The temperature can be used to divide geology sectional surface, determine geothermal gradient, height of concrete surface, and position of water bearing bed.
1. Probe:
|
Size |
Φ40mm×800mm
|
Pressure endured: |
15 MPa |
Measurement range: |
5~95℃;
|
Measurement accuracy: |
±0.5℃;
|
Time coefficient: |
<20 s; |
Insulation resistance: |
a. Resistance between circuit and instrument shell: >100 MΩ;
b. Resistance at moisture environment: not less than 2 MΩ;
(Note1: Resistance between circuit and instrument shell is the resistance when the probe is not in the borehole; Resistance at moisture environment is the resistance when dry the instrument after taking it out from borehole. Note2: Measurement voltage should not be more than 30 V);
|
2. Controlling unit
|
Size: |
280×234×138mm;
|
Measurement range: |
0~100℃ |
Resolution: |
0.1 ℃;
|
Power supply: |
220V, 50 Hz, 4 W |
