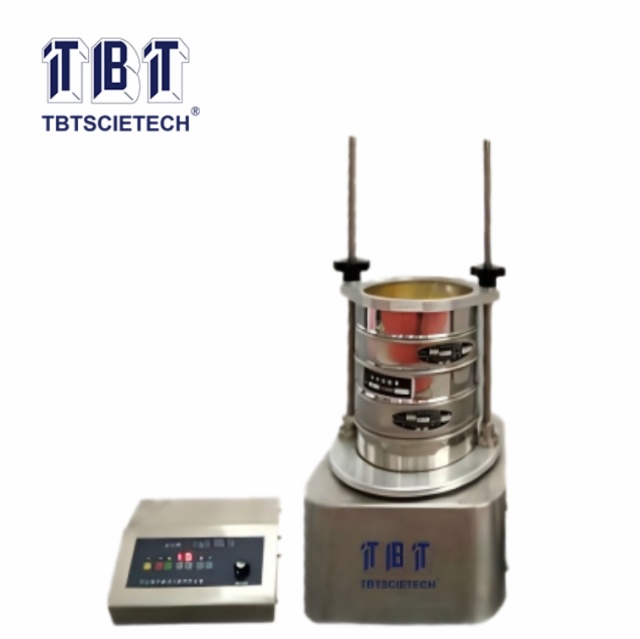

1. The best equipment for laboratory tests and screen on the scene.
2. Adopting the advanced sieving technology and making samples not only do vertical vibration, but also roll, make full use of screen mesh to receive the best results within the shortest time.
3. With displaying screen of clear digital control.
4. Newly-designed anti-vibration fast fixed chuck, can guarantee that the sift fixed on base safely, while it’s convenient to change or dismantle.
II. Characteristics
1. Accurate, and the testing results can be shown again.
2. There are two kinds of alternative work patterns.
3. Time control within 0---99 minutes and accurate into seconds
4. It can regulate the level of distribution, to make screening more average, having more accurate data.
5. Without any rotating parts and maintenance, in low noise, screening process can be observed.
6. Applied to dry and wet-screened sieve.
7. Can be equipped with screen Ø203 or Ø100 or Ø75 one to eight layers
NO.
|
Name
|
Unit
|
Quantity
|
1
|
Screen layer
|
layer
|
1~8
|
2
|
Screen diameter
|
mm
|
Ø203 or Ø100 or Ø75
|
3
|
Sieve size
|
mm
|
0.028~3
|
4
|
Noise
|
dB
|
<50
|
5
|
Amplitude
|
mm
|
0~3
|
6
|
Vibration frequency
|
t/min
|
3000; 6000
|
7
|
Operation mode
|
kinds
|
2
|
8
|
Power
|
V ;Hz
|
220; 50
|
9
|
Machine Weight
|
Kg
|
25
|
