    CBR Value Test Apparatus TBTCBR-II

    • CBR Value Test Apparatus
    • CBR Value Test Apparatus

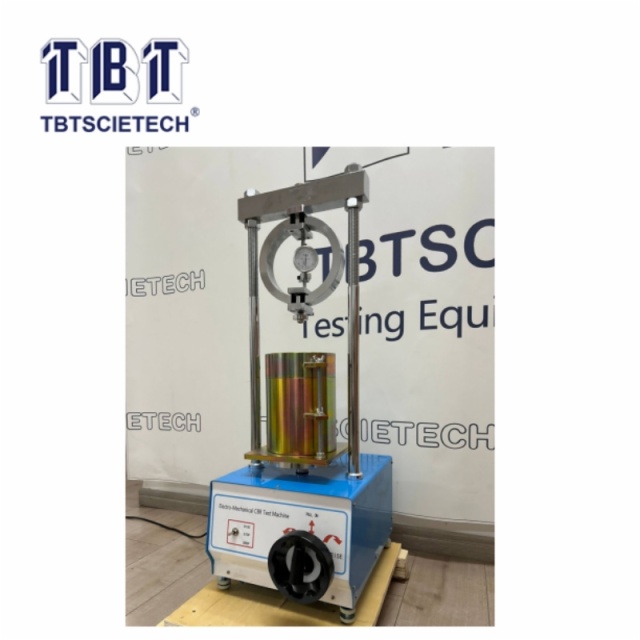

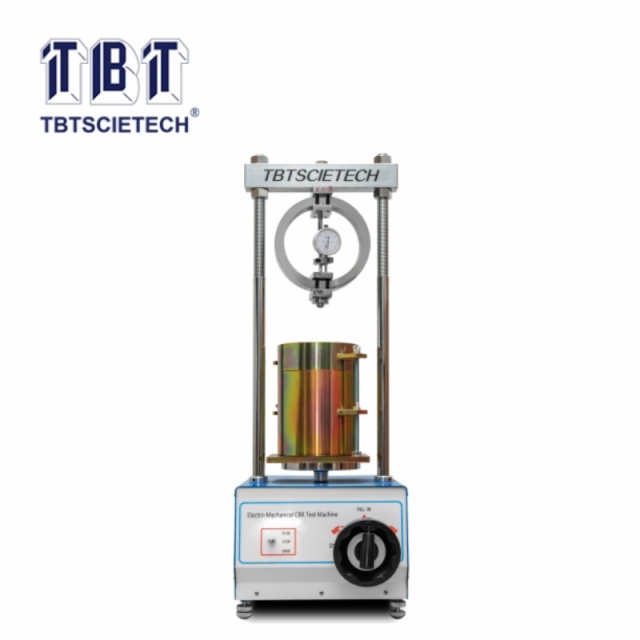

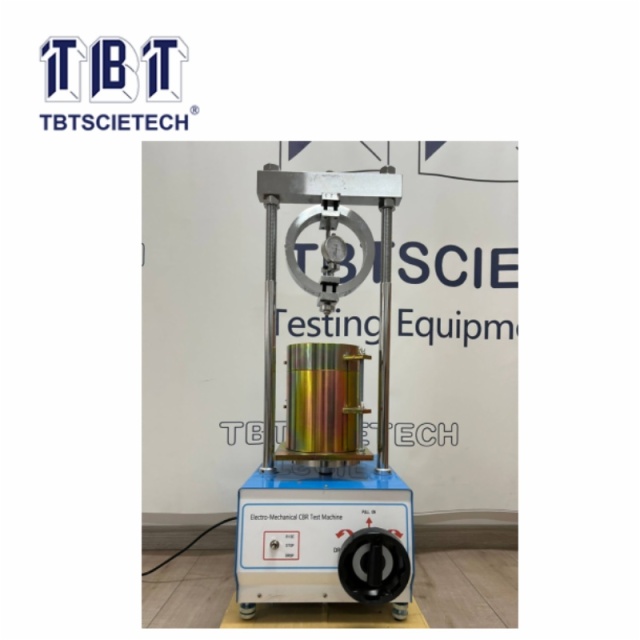

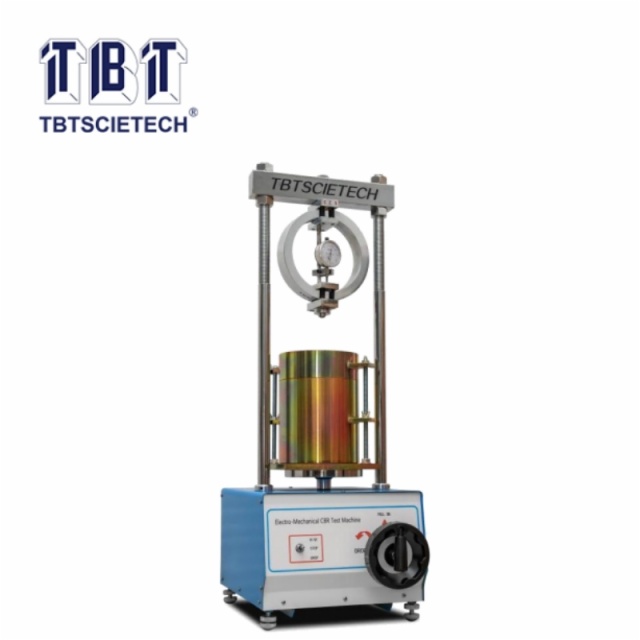

    CBR Value Test Apparatus
    CBR Value Test Apparatus
    Item Code:TBTCBR-II Features:TBTCBR-II can perform evaluation of the California Bearing Ratio (CBR) value of highway sub-bases and sub-grade with a fixed compression speed of 1.27 mm/min, at a maximum capacity of 50 kN.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBTCBR-II can perform evaluation of the California Bearing Ratio (CBR) value of highway sub-bases and sub-grade with a fixed compression speed of 1.27 mm/min, at a maximum capacity of 50 kN.
    The maximum particle size should be controlled within 25mm.



    BS 1377, 1924, EN 13286-47, ASTM D1883, AASHTO T193

    1.Rigid frame and stable base for long term test;
    2.It equips with handwheel for manual operation besides electric drive.

    Bearing ratio tester

    Speed 1.27mm/min, maximum capacity 50kN

    Penetrating rod

    The diameter of the end face is 50mm

    Dial gauge

    2pieces with 0~10mm measurement range

    Perforated plate

    2pieces

    Load board

    2pieces

    Test mould

    Inner diameter 152mm, height 177.8mm;

    T-shaped cushion diameter 150mm, height 61mm;

    Can be replaced according to BS/ASTM standards

    Force measuring ring

    1set

    Power supply voltage

    220V, 50Hz

    Weight

    Around 70kg

    Size

    Around 57x43x100cm
