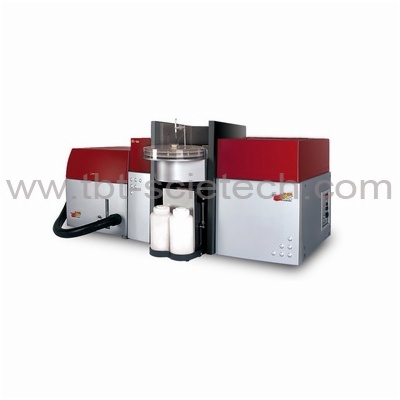

SP-3500 Series Atomic Absorption Spectrophotometer
Model
|
SP-3520AA
|
SP-3530AA
|
|
Optical
System
|
Instrument Type
|
Single Beam Reflection Achromatic Optics System
|
|
Monochrometer
|
Achromatic C-T
|
|
Bandwidth
|
0.1,0.2,0.7,1.4nm Adjustable
|
|
Wavelength Range
|
190-900
|
|
Wavelength Accuracy
|
±0.2
|
|
Wavelength Repeatability
|
≤0.1nm
|
|
Resolution
|
Better than 0.3nm
(Mn 279.5nm&279.8nm Peak and Valley ≤30%)
|
|
Spectr
ophoto-
Metric
Properties
|
Measurement
|
A,T,C
|
|
Photometric Range
|
0-125%,-0.1-3.00A
|
|
Static Baseline Drift
|
(Cu) ±0.003A/30min
|
|
Dynamic Baseline Drift
|
(Cu) ±0.004A/30min
|
|
Background Correction
|
D-Lamp Background Correction,
Self-absorbance background correction >50times
|
|
|
Atomization System
|
Flame& Graphite Furnace
|
|
Flame
|
Characteristic
Concentration
|
(Cu) ≤0.03ug/ml/1%
|
|
Detection limit
|
(Cu) ≤0.006ug/ml
|
|
Precision
|
RSD ≤1%
|
|
Burner
|
Titanium
|
|
Nebulizer
|
High-efficient Glass nebulizer
|
|
Spray chamber
|
Anticorrosion Material
|
|
Safety measures
|
Flame fuel gas, Power assisted gas. Abnormal
Pressure protection
|
|
Graphite
Furnace
|
Characteristic quantity
|
Characteristic
Value Cd≤0.5x10-12 g
|
|
Detection Limit
|
Characteristic
Value Cd≤1.05x10-12 g
|
|
Precision
|
Precision Cd,≤3%
|
|
Test Manner
|
Flame, Graphite Furnace, Hydride-AA,
flame emission
|
|
Data Process
|
QA/QC
|
Relative coefficient, Abs. concentration SD、RSD,
Analysis data electronic document export is feasible
|
|
Concentration
|
Standard curve , standard addition, interpolation
|
|
Times of repetitive
Measurement
|
1-30times Average Value of A&C
|
|
Report Print
|
Parameters, data result, graph
|
|
Instrum-
ent
Function
|
Instrument setup
|
Horizontal 8-lamps holder
Vertical 88-lamps holder
D-lamp background correction auto-adjust optics
beam device
Automatic wavelength scan, peak seeking band
width adjust
|
|
Others
|
PC
|
Exteriorization
|
|
Demension:lxbxh(mm)
|
790x600x540
|
|
Weight
|
70
|
|
Power Supply
|
(220±22)V,(50±1)Hz
|
|
Temperature
|
10℃ ~30℃
|
|
Humidity range
|
40% ~80%
|
|
