    Asphalt Mix Analyzer(Vibration Method) TBT-0722A

    • Asphalt Mix Analyzer(Vibration Method)
    • Asphalt Mix Analyzer(Vibration Method)
    • Asphalt Mix Analyzer(Vibration Method)
    • Asphalt Mix Analyzer(Vibration Method)
    Asphalt Mix Analyzer(Vibration Method)
    Asphalt Mix Analyzer(Vibration Method)
    Asphalt Mix Analyzer(Vibration Method)
    Asphalt Mix Analyzer(Vibration Method)
    Item Code:TBT-0722A Features:TBT-0722A Asphalt Mix Analyzer is a high-precision, closed-loop testing system designed for the rapid quantitative determination of bitumen content (oil-stone ratio) in bituminous mixtures.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

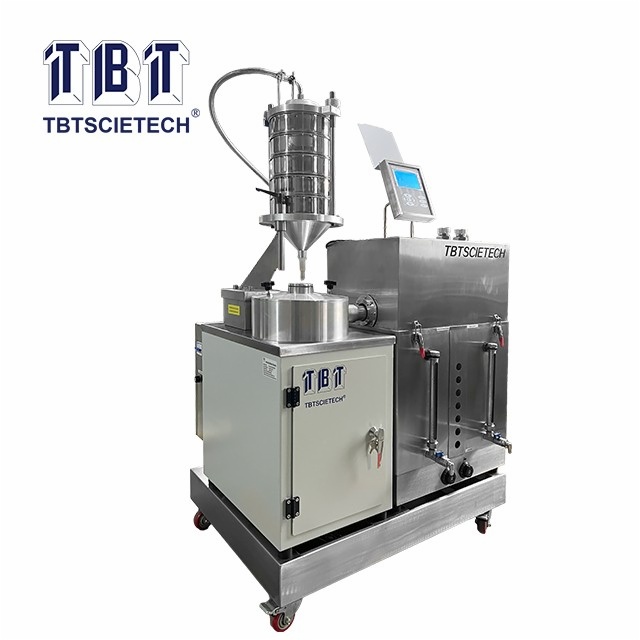

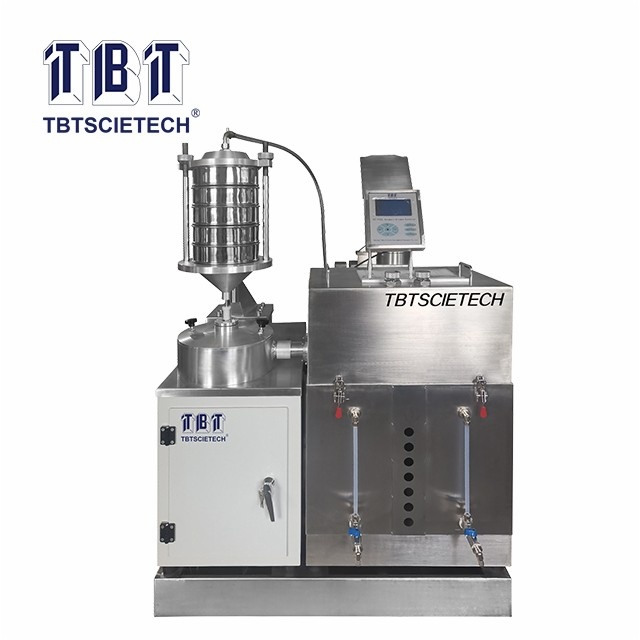

    TBT-0722A Asphalt Mix Analyzer is a high-precision, closed-loop testing system designed for the rapid quantitative determination of bitumen content (oil-stone ratio) in bituminous mixtures.
    Utilizing an advanced centrifuge separation method combined with an integrated vibration sieving unit, the system delivers automated washing, disaggregation, separation and drying of aggregates and binder in one continuous workflow.

    ASTM D2172, AASHTO T164

    1.Floor-type structure and automatic operation;

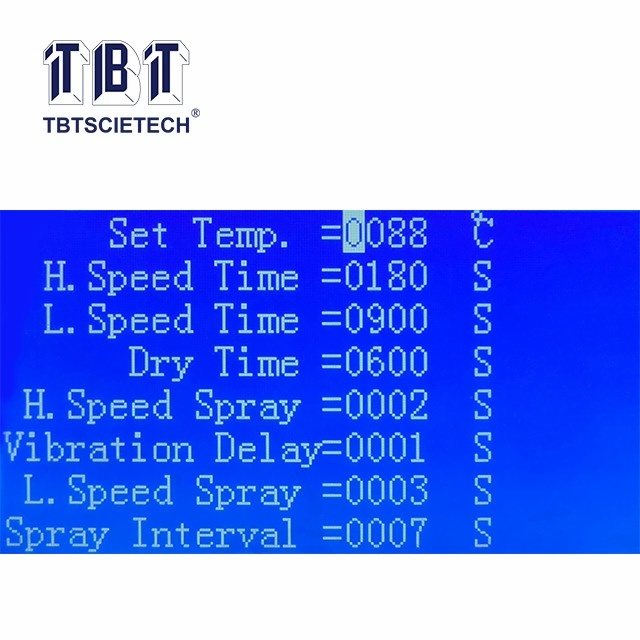

    2.Micro-processing technology, with LCD screen;
    3.Equipped with multi-point level and temperature sensors for real-time monitoring of operating conditions;
    4.The solvent(Trichlorethylene) is used in closed-circuit circulation and has low environmental influence;
    5.High-low-high speed extraction setting makes the fine mineral powder collection better and the test results more reliable;
    6.Auxiliary vacuum collector for cleaning fine powder residual in the working chamber.

    Capacity

    1000g~1500g

    Extraction precision

    ≤0.1%

    Extraction time

    (20~40)minutes per time

    Centrifuging speed

    5500r.p.m, 11000r.p.m

    Working temperature & humidity

    15~35℃; <80%RH

    Size

    Approx. 1400×800×1600mm

    Weight

    Approx. 300kg

    Power supply

    380V, 50Hz, 5kW
