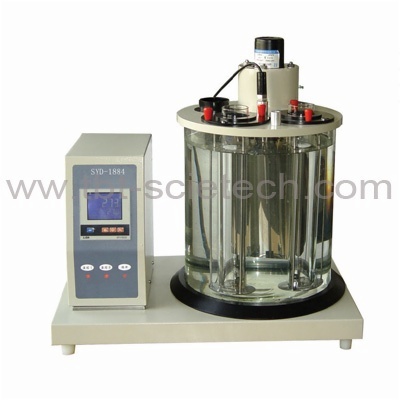

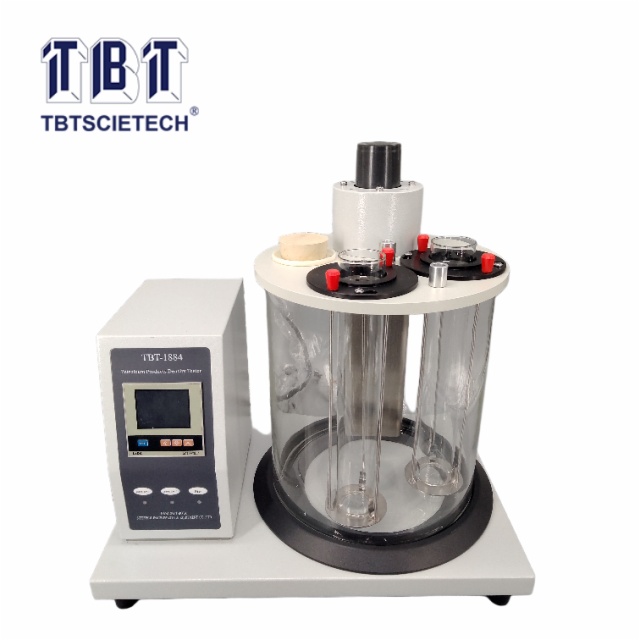

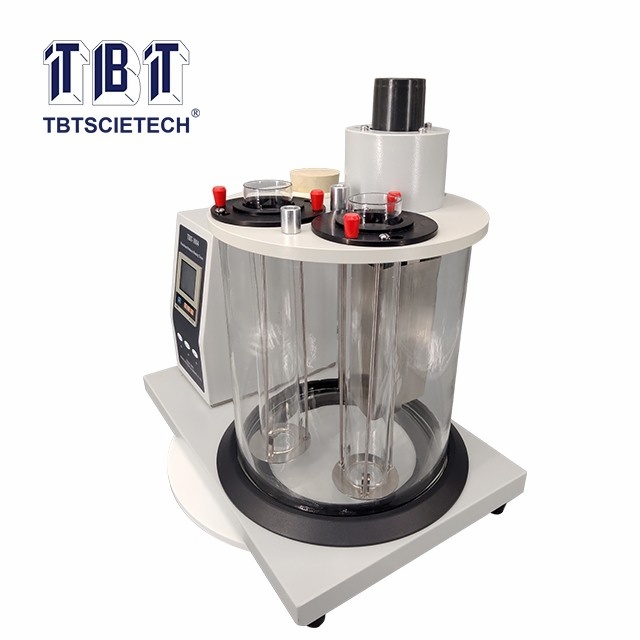

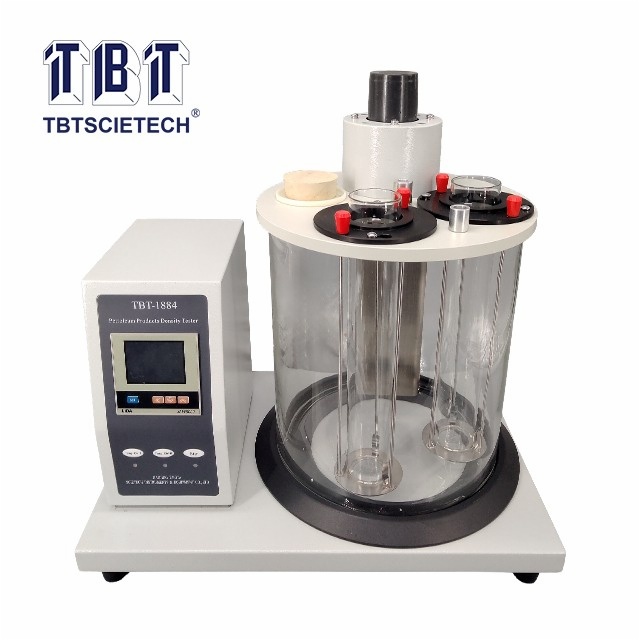

SYD-1884 Petroleum Products Density Tester
I. Purpose:
The instrument is designed and made as per the National Standard GB/T 1884-2000 “Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter Methods)”. It is suitable to determine density of liquid petroleum products using a densimeter.
II. Working condition:
1. Ambient temperature: -10℃ ～ +40℃; the temperature should not change for more than ±2℃;
2. Relative humidity: ≤85％;
3. The instrument should be placed on a flat workbench during operation and please try your best to reduce air convection during a test.
4. If the instrument is not used for a long time, please store it at a dry place.
III. Technical parameters
|
Power supply:
|
AC 220V±10％, 50 Hz
|
|
Cubage of bath:
|
Ф300×380 mm
|
|
Heating power:
|
700 W; 1000 W
|
|
Temperature controller:
|
(1) Temperature controlling range: 0℃～100℃;
(2) Temperature controlling accuracy: ±0.2℃;
(3) Temperature sensor: Industrial platinum resistance, Pt100
|
|
Thermometer:
|
total immersion mercury thermometer with scale division of 0.2 ℃
|
