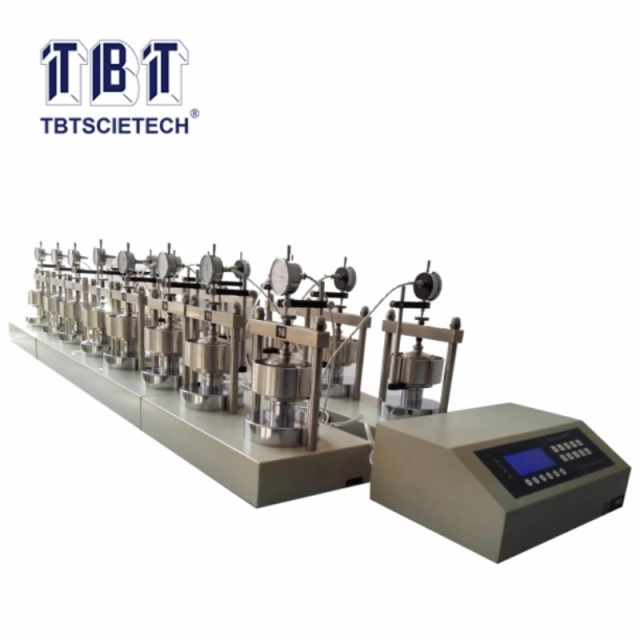

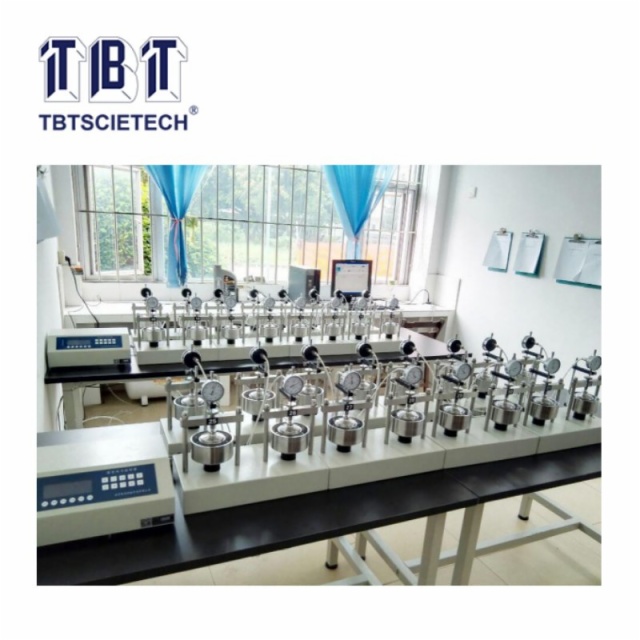

GZQ-1 Full Automatic Pneumatic Consolidometer
The Full Automatic Pneumatic Consolidometer is used to determine compression performance of the soil under the conditions of different load and confining pressure. The complete set of the apparatus consists of consolidometer , pneumatic controller, multichannel communication converter and data acquisition system. It can make an experiment on standard consolidating and quick consolidation test as well as testing consolidating compression and coefficient. The performance of the apparatus is stable and reliable. This apparatus is new model with some features such as low noise, separately control consolidation compression, consolidating compression to be set separately, easy to install software system and easy to operate etc.
I.Specification:
|
Capacity
|
0kN - 4.8kN
|
|
Load accuracy:
|
≤100kPa, absolute error <=±1.0kPa
≥100kPa - 1600kPa, relative error <=±1.0%
|
|
Specimen size::
|
30cm2 50cm2
|
|
Pneumatic control range:
|
0MPa - 0.9MPa
|
|
Pressure sensor: |
0MPa-1.0MPa |
|
Converter channel:
|
1 - 16
|
|
Power supply:
|
220VAC 50Hz
|
Any questions, please contact us.
